37 Inch 2K Single Screen Stretched Bar Display For Shop Window Signage

  • 1
  • 2
  • 3

Brand Name : Sinotectronics

Model Number : IPD-CN37AAH1

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000pcs/Month

Delivery Time : 5-8 days

Packaging Details : carton

Panel Size : 36.3''

Display Mode : Normally Black，SPVA，Transmissive

Resolution : 1080*1920

View Area : 803.52(H) x 452.35 mm(V)

Contrast : 1200:1

USB : 2 * USB（USB OTG&HOST）

Aspect Ratio : 9:16

Power : 55W

Contact Now

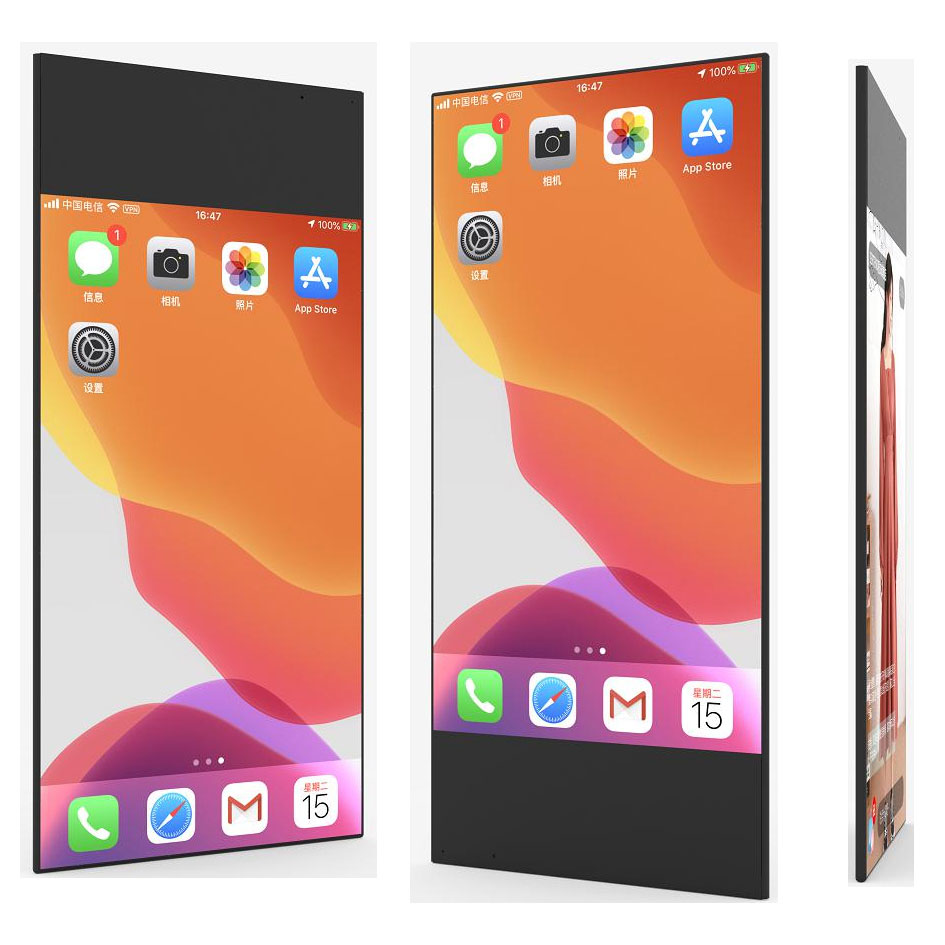

37 Inch 2K Resolution Single Screen Shop Window Signage Stretched Bar Display

1. Product Description

The mainstream aspect ratio of the LCD panel is 4:3 or 16:9. But for some applications, stretched display panel will be much better than the current mainstream screen ratio. Sinotectronics Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

2. Technical Datasheet

System CPU S700,Quad-core A53 SMP4,28nm
RAM 1GB
ROM 8GB
Operation System Android 5.1.1
Display Panel Size 36.3
LCD Brand BOE/LG/AUO
Resolution 1080*1920
View Area 803.52(H) x 452.35 mm(V)
Viewing Angle 178°/178°
Display Mode Normally Black,SPVA,Transmissive
Contrast Ratio 1200:1
Brightness 700cd/㎡
Grey To Grey 14.5
Aspect Ratio 9:16
Network WiFi

2.4G WIFI

802.11b : DQPSK, DBPSK, CCK

802.11 g/n : OFDM /64-QAM,16-QAM,QPSK,BPSK
Ethernet 100M
Bluetooth AP6255 Bluetooth V4.2 of 1, 2 and 3 Mbps
Port USB 2 * USB(USB OTG&HOST)
RJ45 1* RJ45
Card Slot 1* PUSH-PUSH TF Card Slot
Audio 1* Audio-out

Media Play

 Video Format

Support rich video format: AVI, MOV, MKV, WEBM, MP4, M4V, FLV, 3GP, 3G2, 3GPP, DAT, VOB, EVO, MPG, ASF, TP, TRP, TS, M2TS, MTS etc.
Audio Format

Support all format audio files: OGG, APE, FLAC, WAV, AMR, AIFF, MPC.

Support multiple Sound Effect.
Picture Format Support picture format: JPG,JPEG,BMP,GIF,PNG , maximum resolution to 30000*30000；
Shell IP Degree IP4X
Shell Material Black anode aluminum alloy +SGCC
Shell Life 5 years
Others Language Multilingual operations including Chinese and English

Working Temperature

 0--40°

Working Humidity

 10%~80%
Power 55W

Attachment

 Power Adapter 12V5A,50/60Hz

3. Packing

Product Size (mm Package Size (mm) Carton 1pcs/CTN
L W H L W H L W H
987.57 477.58 14.4 1140 570 110 1140 570 110
Net(kg) 10.5 Net(kg) 3.25 G.W(kg) 13.8

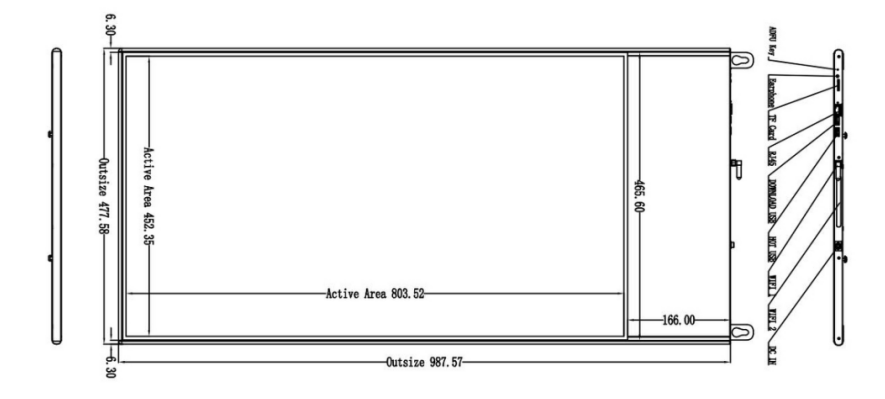

4. Drawing
37 Inch 2K Single Screen Stretched Bar Display For Shop Window Signage
5. Details
37 Inch 2K Single Screen Stretched Bar Display For Shop Window Signage
6. FAQ
37 Inch 2K Single Screen Stretched Bar Display For Shop Window Signage
